360kW - 480kW
DC Distributed EV Charger
Ultra Fast Speed DC EV Charge Station for commercial use
10 minutes charging 400km. driving
Constant Output Voltage 300V-1000V
Compatible with all EVs in the market and future demands
Support CHAdeMO, CCS2
Easy power extension with 40kW Power Module
3 Vehicle charging at the same time
Integrated cable management solution
Small-foot print
SmartDC 480kW distributed charger includes power bank and user terminal, one power bank can support up to 3 user terminals with 6 charging connectors. The distributed charger uses intelligent distribution algorithm to dynamically allocate the power according to different needs of vehicles.
| GENERAL | |
|---|---|
| IP Rating | IP55 |
| IK Rating | IK10 |
| Protection | Input over voltage protection, output under voltage protection, short circuit protection, over current protection, over temperature protection, surge protection, emergency stop protection, etc. |
| Ambient Temperature | -25°C ~ 65°C |
| Rh | 5% ~ 95% |
| Altitude | ≤ 2000m |
| Communication | LAN/4G/Wi-Fi |
| Protocol | OCPP1.6J (Upgradable) |
| Indication | LED & User Interface on User Unit |
| Compliance and Certification | IEC 61851, ISO 15118, Comply with CE and UKCA |

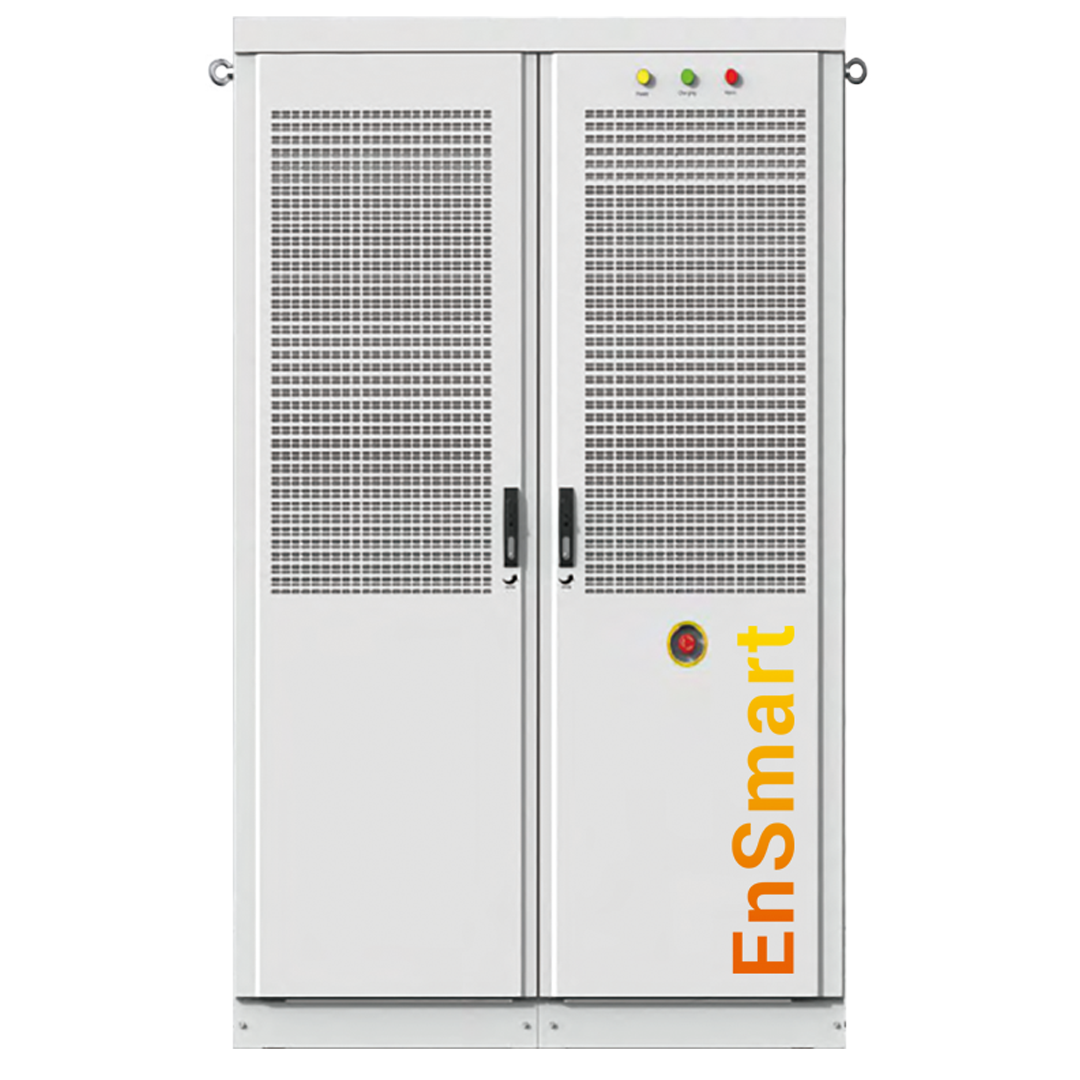

| POWERBANK | |
| EMC | Class A |
| Input Voltage | 400 VAC ± 10% |
| Input Type | 3P+N+PE |
| Frequency | 45 ~ 65 Hz |
| Power Factor | 0.99 |
| Peak Efficiency | 96% |
| Power Output | Flexible power output, Max output 480 kW |
| Maximum Output Current | 1600A |
| Dimension (WxDxH) | 1400x1000x2100mm |
| Weight | ≤ 850Kg |
| USER UNIT | |
| Output Voltage | 200 ~ 1000V |
| Maxmimum Number of Connector | 6 |
| Maximum Current Per Connector | CC2:500A (Liquid Cooled) / 200A (Convention Cooled) CHAdeMO : 200A |
| Cable Lenght | 3.5m (CCS Liquid Cooled) / 5m (Convention Cooled) |
| Load Sharing | Flexible load distribution according to user requirements |
| Payment Method | Visa/Master/RFID/Apple Pay etc. |
| Dimension (WxDxH) | 750x400x2100mm |
| Weight | ≤ 225Kg |
